How to Create a Test SWIFT Message: Technical Protocol and Simulation Guide (2026)

A single malformed delimiter in a SWIFT FIN block triggers an immediate NAK rejection, freezing integration pipelines before a message clears initial network validation. If you are struggling with how to create a test swift message without direct, cost-prohibitive access to official Alliance test facilities, the operational friction is severe. Strict block formatting rules, checksum errors, and shifting standards leave zero margin for syntax deviation.

You already know that relying on unverified scripts or opaque banking interfaces introduces unacceptable operational risk during message staging. In this guide, you will master the exact syntax, block structures, and isolated execution environments required to build and validate test SWIFT financial messages with surgical precision. We’ll deconstruct FIN blocks {1:} through {5:}, formulate syntactically flawless MT103 payloads, and outline sandboxed simulation protocols to ensure your transactions pass every validation gate.

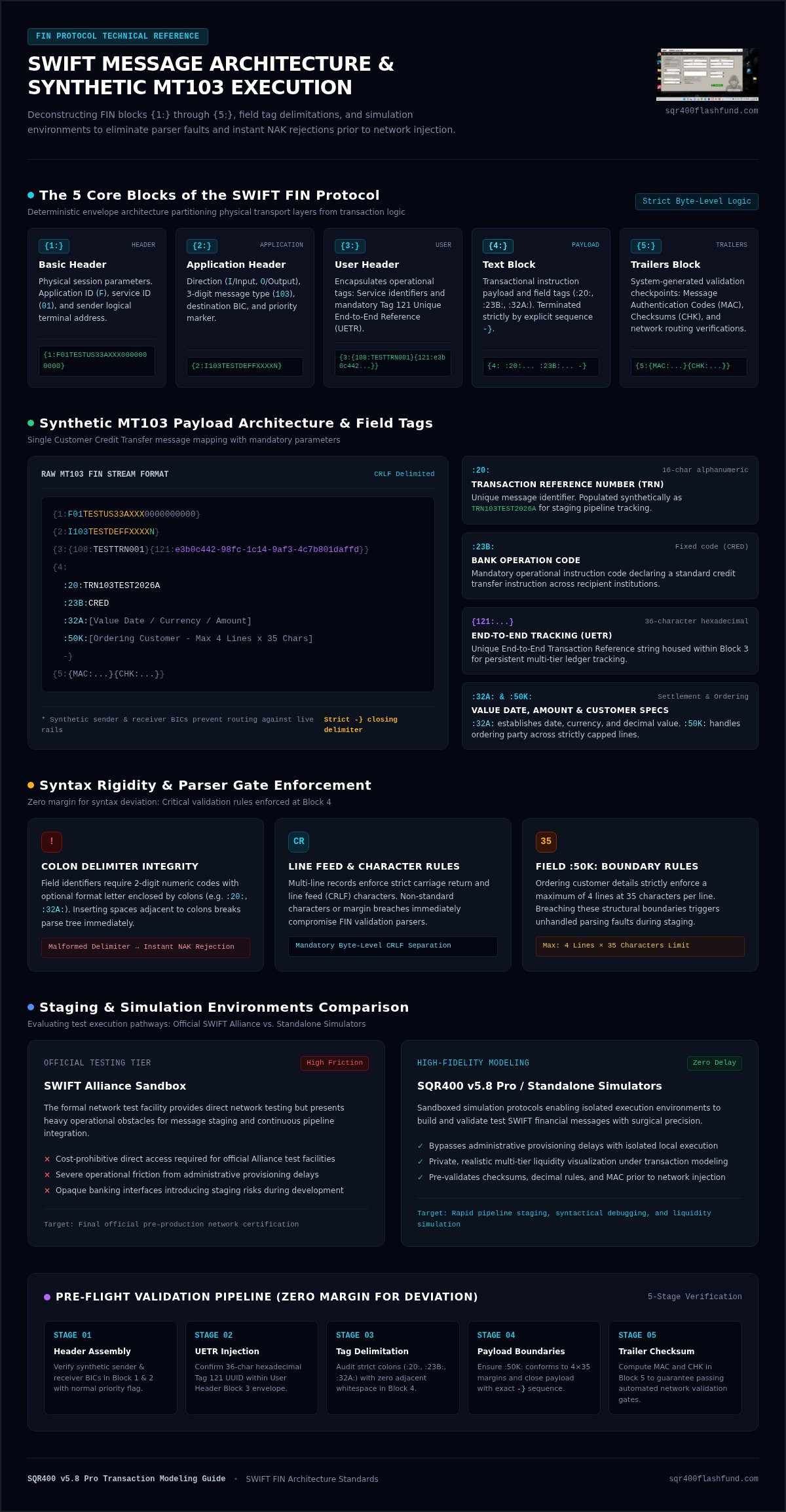

Understanding SWIFT Message Architecture: Blocks, Tags, and Syntax Rules

Every SWIFT FIN transmission operates inside a deterministic, multi-layered envelope. If you need to master how to create a test swift message, diagnosing parser faults requires deconstructing this envelope down to its raw byte-level logic. The standardized SWIFT message structure enforces five distinct blocks delineated by curly brackets. Each block handles isolated network responsibilities, separating transport headers from execution payloads. Omitting an opening delimiter or misaligning a service code corrupts the transmission stream immediately.

The Five Core Blocks of the SWIFT FIN Protocol

Execution pipelines process messages through five sequential blocks, each governing a precise operational tier:

• Block 1 (Basic Header): Identifies the physical session parameters. It specifies the application ID (F for FIN), service identifier (01), and the logical terminal address, which combines the sender BIC, terminal code, and session sequence tracking. Test messages mandate synthetic terminal markers to avoid routing conflicts against live rails.
• Block 2 (Application Header): Dictates message direction (Input I or Output O), the three-digit message type (such as 103), the receiver destination BIC, and processing priority markers.
• Block 3 (User Header): Encapsulates optional operational tags, including service identifiers and the mandatory Tag 121 Unique End-to-End Transaction Reference (UETR).
• Block 4 (Text Block): Contains the transactional payload and business logic fields. Terminated by an explicit hyphen and bracket sequence (-}), this block houses the operational instructions.
• Block 5 (Trailers): Appends system-generated validation checkpoints, including Message Authentication Codes (MAC), proprietary checksums (CHK), and network routing verifications.

Tag Syntax and Delimiter Discipline in Block 4

Within Block 4, syntax rigidity dictates operational success. Fields begin with a two-digit numeric identifier paired with an optional alphabetical format option, enclosed strictly by colon delimiters. For example, :20: marks the transaction reference, while :32A: designates the value date, currency, and settlement amount. Inserting spaces adjacent to these colons breaks the parse tree instantly.

Multi-line records enforce strict carriage return and line feed (CRLF) characters. Field :50K:, which covers ordering customer details, allows a maximum of four lines at 35 characters each. Breaching these margins or introducing non-standard characters triggers an unhandled parsing fault. Precision at the delimiter level is non-negotiable when evaluating how to create a test swift message for staging pipelines.

How to Build a Test MT103 Message: Step-by-Step Generation Guide

Constructing an MT103 single customer credit transfer requires strict alignment between transport blocks and payload logic. If you are examining how to create a test swift message for staging environments, executing this build recipe eliminates syntax rejections before payload transmission. Every tag must conform to baseline official SWIFT standards, preventing costly runtime validation faults across connected ledger endpoints.

Configuring Headers and Session Controls (Blocks 1 Through 3)

Headers define the transmission channel and message identity. Populate these three blocks sequentially:

• Block 1: Define the session string as {1:F01TESTUS33AXXX0000000000}. F01 marks FIN messaging. TESTUS33AXXX serves as the synthetic sender BIC, followed by four-digit session and sequence tracking numbers set to zeroes.
• Block 2: Declare the input direction and destination: {2:I103TESTDEFFXXXXN}. I103 dictates an incoming MT103 packet, TESTDEFFXXXX sets the 12-character synthetic receiver BIC, and N specifies normal delivery priority.
• Block 3: Encapsulate network control tags: {3:{108:TESTTRN001}{121:e3b0c442-98fc-1c14-9af3-4c7b801daffd}}. Tag 121 houses a standardized 36-character hexadecimal UETR string.

Populating Mandatory Field Tags in Block 4

Block 4 delivers the actual execution logic. Open with {4: and structure the transactional lines:

• :20:TRN103TEST2026A: Assigns the 16-character alphanumeric Transaction Reference Number.
• :23B:CRED: Sets the mandatory operational instruction code, indicating a standard credit transfer.
• :32A:260925EUR1500000,00: Compiles the YYMMDD value date, three-letter ISO currency (EUR), and interbank amount. SWIFT mandates a comma as the decimal separator.
• :50A:/1234567890
TESTUS33XXX: Establishes the ordering customer identifier and account line.
• :59:/DE89370400440532013000
STAGING RECIPIENT AG: Declares the beneficiary IBAN and entity name.
• :71A:SHA: Allocates transaction processing costs according to the standard SHA (shared) rule.

Seal Block 4 immediately with the mandatory sequence terminator: -}.

Appending the Block 5 Trailer and Security Checksums

The closing block handles network security envelopes. Structure Block 5 as {5:{MAC:0A1B2C3D}{CHK:9E8F7A6B5C4D}}. The Message Authentication Code (MAC) and Checksum (CHK) tags validate packet payload integrity against tampering during downstream hops.

For operations demanding rapid execution without manual text editing, running a dedicated MT103 simulation tool accelerates syntax verification across local infrastructure. When testing complex interbank flows or balance presentations, deploying specialized engines like the SQR400 v5.8 Pro provides granular control over transaction telemetry.

Validating Message Syntax and Network Compliance Before Execution

Automated network gateways execute strict pre-parsing passes before any financial payload enters a processing queue. When analyzing how to create a test swift message, understanding these validation rules determines whether your payload is accepted or rejected with a fatal NAK alert. Real-time parsers enforce character set restrictions, decimal fractional precision, and routing directory verification. A single syntax infraction invalidates the entire block stream.

Character Set Rules and Forbidden Formatting

Block 4 narrative fields demand compliance with SWIFT Character Set X. This restricted set permits uppercase and lowercase alphabetic characters, numeric digits, and a limited set of special characters: / - ? : ( ) . , ' + and space. Exclamation marks, ampersands, asterisks, and currency signs like $ or € are strictly prohibited. Inserting an unescaped slash at the beginning or end of a narrative line breaks parser boundary logic. Additionally, every text line must remain within the 35-character threshold to prevent buffer truncation faults.

Validating BIC Structures and Checksum Calculations

Interbank routing requires structural integrity across all financial identifiers. Reference the SWIFT Standards Documentation when auditing synthetic routing parameters. Every Business Identifier Code (BIC) must conform strictly to ISO 9362 specifications, consisting of either eight or eleven alphanumeric characters:

• Institution Code: 4 alphabetic characters identifying the bank.
• Country Code: 2 letters adhering strictly to ISO 3166-1 alpha-2 standards.
• Location Code: 2 alphanumeric characters denoting regional office or branch.
• Branch Code: 3 optional alphanumeric characters, defaulting to XXX for primary office routing.

Intermediary tags must also align logically with settlement currencies. Generating an MT103 with a USD payload routed through a domestic European clearing identifier creates validation conflicts in multi-currency gateway engines.

Isolating Test Packets from Production Settlement Rails

Isolating test transmissions from live real-time gross settlement systems is mandatory. Testing how to create a test swift message without dedicated environmental segregation risks routing errors or unexpected compliance triggers across institutional ledgers. Production firewalls monitor inbound traffic for unauthorized payment instructions. Test messages must carry test session identifiers in Block 1 or explicit testing qualifiers in Block 3.

Engineers simulating private balance behavior often use specialized bank account flashing software to visualize ledger adjustments locally without contacting external routing networks. This sandboxing approach guarantees total operational safety during transaction stress tests.

Testing Environments: SWIFT Alliance Sandbox vs. Standalone Protocol Simulators

Executing transaction tests demands infrastructure matched to your operational profile. When establishing how to create a test swift message, selecting the deployment environment dictates whether testing proceeds efficiently or stalls under regulatory friction. Engineering teams and private operators must navigate a stark choice between sanctioned institutional gateways and self-contained protocol simulators.

The Institutional Route: SWIFT Test and Training (T&T)

The SWIFT Test and Training (T&T) system replicates live SWIFTNet conditions with total fidelity. It routes packets through mirrored central validation engines, checking format adherence and network policies. This environment requires a fully registered Business Identifier Code, formal institutional sponsorship, and active physical security credentials. Administrative onboarding often takes months. Message injection is strictly metered, and test activities generate central logs visible to monitoring authorities.

The Agile Route: Standalone Protocol Simulation Software

Standalone protocol simulators eliminate third-party logging and administrative bottlenecks. By executing parsing logic on local runtimes, these platforms allow operators to configure, execute, and validate MT103 and administrative payloads instantly. The benefits of standalone execution include:

• Complete Telemetry Isolation: Messages execute within private memory spaces, preventing leaks to external financial clearing rails.
• Immediate Deployment: Zero lead time for account provisioning, clearance audits, or recurring institutional approvals.
• High-Fidelity Visual Modeling: Simulators generate structured transaction receipts, status outputs, and interbank confirmation states suitable for deal verification.
• Integrated Workflows: Modern simulation suites align directly with advanced proof of funds software, transforming raw text payloads into clear institutional documentation.

Rigid institutional sandboxes limit agility when testing how to create a test swift message under strict time constraints. Autonomous operators require full operational control without bureaucratic delays. For unconstrained protocol modeling, explore standalone simulation tools from SQR400 Flash Fund to run comprehensive transaction verifications on private infrastructure.

Deploying High-Fidelity Transaction Simulations with SQR400 v5.8 Pro

Generating raw text strings is insufficient for high-stakes business negotiations and institutional demonstrations. When structuring how to create a test swift message, operators require end-to-end telemetry that renders realistic ledger impacts across modern banking interfaces. SQR400 v5.8 Pro bridges the operational gap between static syntax files and active transactional visualization. It synthesizes flawless multi-tier SWIFT confirmations locally, ensuring zero exposure to public networks while maintaining strict format fidelity.

Multi-Protocol Support: Expanding Beyond MT103 to MT760 and MT799

Institutional workflows frequently extend beyond customer payment transfers. SQR400 v5.8 Pro provides native support for complex interbank messaging protocols:

• MT760 Demand Guarantees and Standby Letters of Credit: Generates complex documentary credit records with populated Tag 40C (Applicable Rules), Tag 77C (Undertaking Terms), and exact sequence specifications.
• MT799 Free-Format Messaging: Constructs authenticated administrative transmissions utilized for multi-bank pre-advice, confirmations, and liquidity verification proofs.
• Inter-Protocol Synchronicity: Aligns transaction parameters across MT103, MT760, and MT799 records, ensuring reference numbers, value dates, and BIC routing remain identical across nested trade scenarios.

Operational Execution and Professional Presentation Standards

SQR400 v5.8 Pro operates as a standalone engine designed for elite operators who demand total reliability. The software generates institutional-grade transaction confirmations without routing through live clearing rails or executing actual money transfers. Automated syntax compilers parse every narrative line, confirming that delimiter sequences, currency decimal limits, and character encodings match global standards.

Executing transaction simulations within this dedicated architecture isolates staging activities entirely from production core banking infrastructure. It eliminates third-party telemetry, prevents unintended network rejects, and provides total control over balance visual states. For operators evaluating how to create a test swift message within a secure, autonomous environment, the comprehensive architecture of SQR400 Flash Fund simulation software delivers the execution power, lifetime licensing support, and precision required for mission-critical operations.

Mastering Deterministic Protocol Simulation and Staging Control

Maintaining absolute block syntax discipline and strict delimiter compliance is the foundation of dependable financial message generation. Understanding how to create a test swift message without triggering fatal network rejections protects your operational infrastructure, ensuring every header and payload field passes rigorous parsing filters before downstream processing. Isolating test execution from active clearing rails eliminates compliance hazards and central audit exposure.

High-stakes business presentations and institutional negotiations demand far more than static text files. With full technical compatibility across MT103, MT760, and MT799 standards, a self-contained simulation architecture provides complete operational privacy and realistic liquidity visualization. You don’t have to navigate bureaucratic onboarding bottlenecks to validate mission-critical payloads. Take definitive command of your staging pipelines now: Deploy SQR400 v5.8 Pro for Advanced Financial Protocol Simulation and execute every transaction model with complete technical precision.

Frequently Asked Questions

What is the difference between a test SWIFT message and a live SWIFT message?

A test SWIFT message operates entirely within simulated or designated training channels without moving actual capital or settling ledger entries. Live messages clear across real-time gross settlement systems, legally binding counterparty accounts. Test packets utilize synthetic routing codes, staging indicators in Block 1 or Block 3, and dummy accounts. Understanding how to create a test swift message guarantees your engineering team can stress-test format logic without risking live settlement exposure.

Can you send a test SWIFT message without a registered BIC code?

You cannot inject messages into official network infrastructure without a registered BIC, but you can simulate them locally using synthetic BICs. Official SWIFTNet gateways require active institutional membership and authenticated BIC directories. Standalone simulators bypass this administrative barrier by evaluating syntax against standard ISO 9362 schemas on isolated endpoints, allowing operators to validate complete message structures without maintaining a certified institutional BIC.

What are the mandatory fields required to generate a valid test MT103?

A compliant MT103 payload requires specific mandatory fields in Block 4 to pass core parser validation. These include Field 20 (Transaction Reference Number), Field 23B (Bank Operation Code, typically ‘CRED’), and Field 32A (Value Date, Currency Code, and Settlement Amount). Additionally, Field 50A or 50K (Ordering Customer), Field 59 (Beneficiary Customer), and Field 71A (Details of Charges) must be populated according to strict character limits and delimiter conventions.

How do SWIFT message blocks 1, 2, 3, 4, and 5 interact during testing?

Each block functions as a distinct layer in the transmission stack, evaluated sequentially by network parsers. Block 1 handles session connectivity and sender verification. Block 2 directs routing priority and destination endpoints. Block 3 embeds technical controls like UETR tracking. Block 4 delivers the business instructions and amount data. Finally, Block 5 calculates message authentication codes and checksums across Block 4, ensuring payload integrity before final gateway acceptance.

What causes a SWIFT network rejection error during message parsing?

Network parsing rejections stem primarily from character set violations, malformed delimiters, or incorrect decimal formatting. Inserting unauthorized symbols outside SWIFT Character Set X immediately triggers a NAK response. Exceeding the 35-character narrative line limit or using period characters instead of commas for decimals in Field 32A also corrupts the parse tree. When practicing how to create a test swift message, strict adherence to line-ending CRLF rules prevents terminal validation faults.

Can you simulate MT799 and MT760 messages using standalone software?

Yes, advanced standalone simulation environments natively support both MT799 free-format notices and MT760 demand guarantee protocols. These tools parse complex documentary credit requirements, sequence tags, and pre-advice instructions without requiring active SWIFT Alliance connectivity. Autonomous engines validate the structural boundaries and syntax rules of trade finance messages locally, ensuring documents meet institutional formatting benchmarks before presentation.

How does SQR400 v5.8 Pro assist in financial protocol visualization?

SQR400 v5.8 Pro acts as an institutional-grade protocol simulator that renders realistic transaction confirmations and temporary balance visualizations across banking interfaces. It executes offline simulations across MT103, MT760, and MT799 formats with surgical syntax fidelity. Designed for high-stakes business negotiations, the software validates transaction parameters without connecting to live clearing systems or performing actual money transfer services, preserving total operational discretion.
